 New Super Slim Compact Design |
 Optimized Air Blower For Quiet Operation |
 360º Round Air Flow |
 External Duct Support |
 Fresh Air Intake |
 Low Amp DC Motor |
 Built-In Drain Pump, With Easy Access For Maintenance |
 Auto Restart |
 Quiet Operation Down To 27 Db(A) |
 Gold Fin Hydrophilic Coating Treatment |
 Fireproof Electrical Box |
 Wireless Controller (Standard) |
 Wired Wall Controller (Optional) |
 Easy Maintenance |

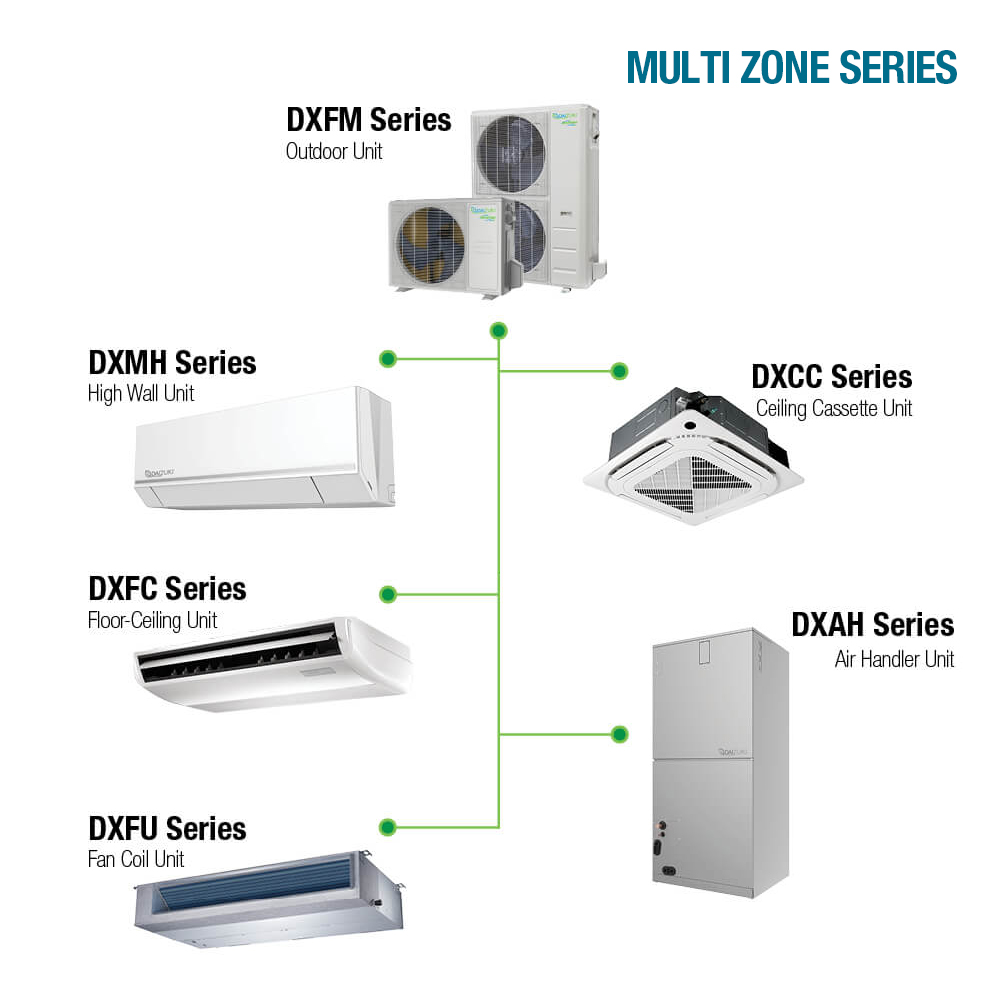

Our multi zone line gives you over 246 possible combinations! Connect up to 5 zones with six different indoor systems from our high wall mounts, 4-way and 1-way cassettes, floor-ceiling units, fan coils, and air handlers. The power of flexible, customizable comfort is in your hands with Daizuki.
This Multi Zone 4-Way Cassette from the DXCC Series features top of the line Full DC Inverter and Heat-Pump technology. It has 12,000 BTU in capacity, high SEER2 rating for electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.
To assure you of the highest quality standards, this product is AHRI Approved and certified with the ETL Mark. Plus, thanks to its high energy efficiency, it is Energy Star certified. Consult your local laws for energy efficiency rebates and subsidies.
This Multi Zone 4-Way Cassette Model Features:
- Smart Inverter. Can save energy while reaching the set temperature faster thanks to its advanced Low Amp DC Motor technology.
- Smart Troubleshooting. There is no time for downtime with Fireproof Electrical Box.
- Compact and slim design with optimized air blower for quiet operation, 360º round air flow and fresh air intake. Includes external duct support, and built-in drain pump with easy access for maintenance.
- GoldFin Technology. Provides coil protection against corrosion in environments where traditional coatings fail.
Cancer & Reproductive Harm www.P65Warnings.ca.gov
FLEX-MOUNT MULTI ZONE
| Condenser Unit | High Wall Unit | Floor-Ceiling Unit | Air Handler Unit | Fan Coil Unit | 1-Way Ceiling Cassette Unit |
| DXFM Series | DXMH Series | DXFC Series | DXAH Series | DXFU Series | DX1C Series |
 |
 |
 |
 |
 |
 |
| TECHNICAL SPECIFICATIONS | |
| Power Supply | 208~230V/1Ph/60Hz |
| Heat Pump | Yes |
| Cooling BTU | 12000 |
| Heating at 47°F BTU | 12000 |
| Thermostat Type – Wireless Remote Controller | Standard |
| Thermostat Type – Wired/Programmable Control, Wifi | Optional |
| Temperature Operation Range – Cooling (°F) | 60~90 |
| Temperature Operation Range – Heating (°F) | 32~86 |
| Ambient Temperature – Cooling (°F) | -13~122 |
| Ambient Temperature – Heating (°F) | -13~75 |
| Outdoor SKU | DXCC12E426-21 |
| DIMENSIONS | |
| OUTDOOR UNIT | |
| Net Dimension (W*H*D) | 22.44 x 22.44 x 10.24 in
1092 x 762 x 254 mm |
| Packing Dimension (W*H*D) | 26.06 x 26.06 x 12.48 in
1296 x 812 x 305 mm |
| WEIGHT | |
| OUTDOOR UNIT | |
| Net | 35.27 lb
16 kg |
| Packing | 41.01 lb
19 kg |
***You can make your orders per model and optimize the loading capacities for the container.
| WHOLESALER | |
| LOADING x CONTAINER | 40HQ Floor Loaded |
| Sets | Pcs |
|
|
|
|
|
|
|
|
|
* This Manual contains: Technical Information, Installation, Maintenance and Owner Manual and other help information.
| DXCC | |||||||
|---|---|---|---|---|---|---|---|
| WITH Valid Warranty Registration | |||||||
| Control Remote | Coil | Parts | Compressor | ||||
| n/a | 1 yr | 5 yr | 7 yr | ||||
|
Although we receive less than 0.02% defects claims on our wide range of products, it is better to be safe than sorry! Take advantage of our Limited Warranty by registering your product for warranty as soon as it is installed by a licensed HVAC Technician.
If you are looking for technical support, you can contact us via email at (customerservice@daizuki.com)or call our toll-free support line +1(800)226-9550 from Monday through Friday, 9:00 am to 5:00 pm ETA. |
|
|
|
|
