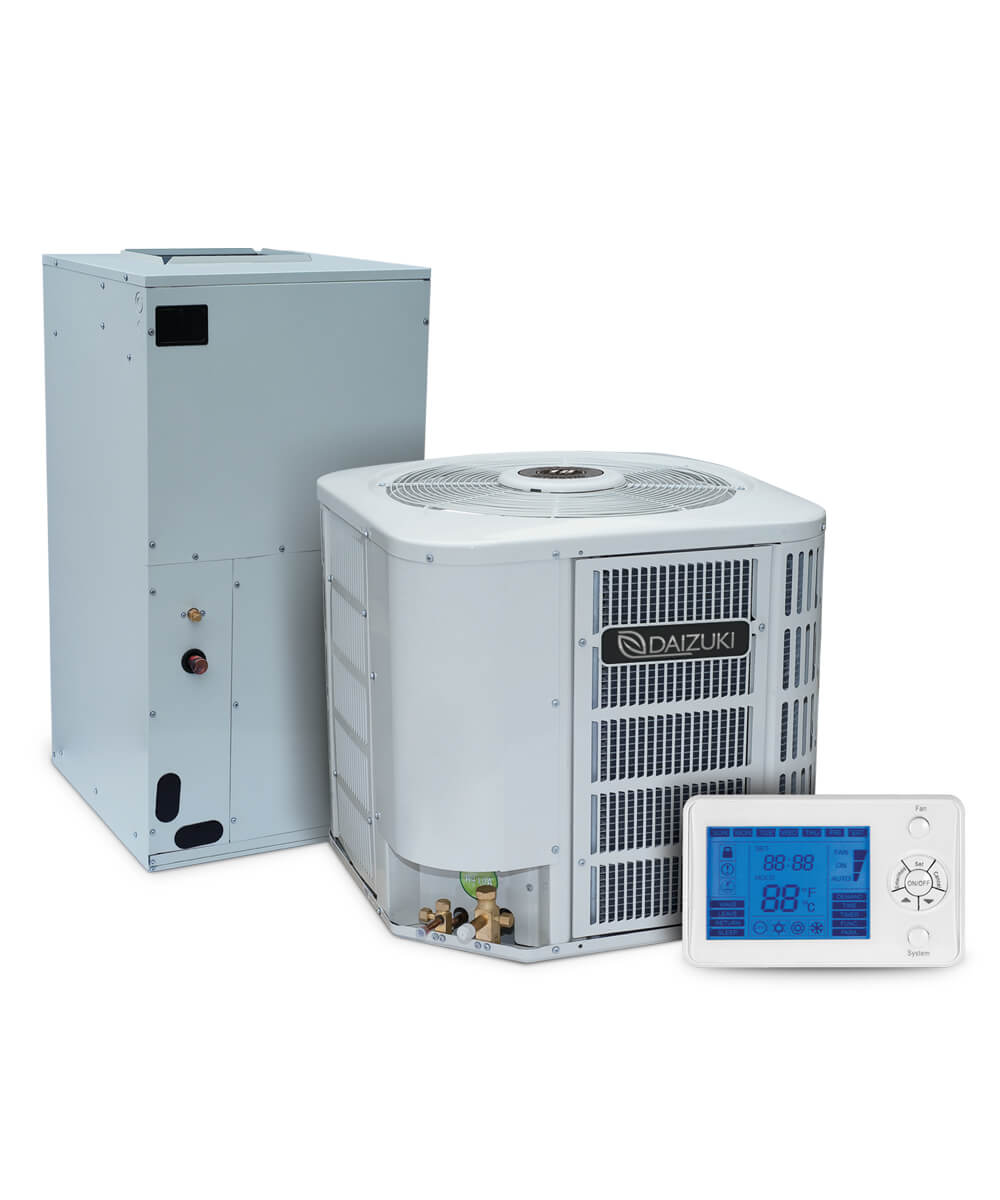

This Central Split System has 41,000 BTU in cooling capacity and 17.5 SEER in efficiency. It works with a power supply source of 208~230V/1Ph/60Hz and pre-charged with R410A refrigerant which does not contribute to ozone depletion.
Thanks to its Full Inverter Technology and high SEER rating, the Split System can operate more efficiently, which can potentially lower your electrical consumption, and operates quieter than other technologies to improve your comfort and wellbeing.
To bring you peace of mind, this equipment is AHRI Approved and certified with the ETL Mark for high quality standards.
| CVX – CXN Series | |
| Condensing Unit | Air Handler |
| CVX1848-140BYS | CXN1848-120BYC |
| TECHNICAL SPECIFICATIONS | |||
| Condensing Unit | Air Handler | ||
| SKU | CVX1848-120BYS | CXN1848-120BYC | |
| BTU | 41,000 | 41,000 | |
| Power Supply | 208~230V/1Ph/60Hz | 208~230V/1Ph/60Hz | |
| SEER | 17.5 | 17.5 | |
| Heat Pump | No | No | |
| Refrigerant Gas | R410A | R410A | |
| Installation Kit | No | No | |
| DIMENSIONS | CVX1848-140BYS | CXN1848-120BYC | |
| Net Dimension (W*H*D) | 27.9 x 27.9 x 33.4 in
710 x 710 x 850 mm |
24.4 x 21.2 x 48.1 in
621 x 540 x 1224 mm |
|
| Packing Dimension (W*H*D) | 30.4 x 30.4 x 39.5 in
773 x 773 x 1005 mm |
25.8 x 24.4 x 50.3 in
656 x 622 x 1280 mm |
|
| WEIGHT | |||
| Net | 169.7 lb
77 kg |
163.1 lb
74 kg |
|
| Packing | 178.5 lb
81 kg |
178.5 lb
81 kg |
|
***You can make your orders per model and optimize the loading capacities for the container.
| WHOLESALER | |||
| CVX1848-140BYS | CXN1848-120BYC | ||
| LOADING x CONTAINER | 40HQ Floor Loaded | LOADING x CONTAINER | 40HQ Floor Loaded |
| Sets | 125 Pcs | Sets | 94 Pcs |
|
|
|
|
|
AHRI Certificate |
|

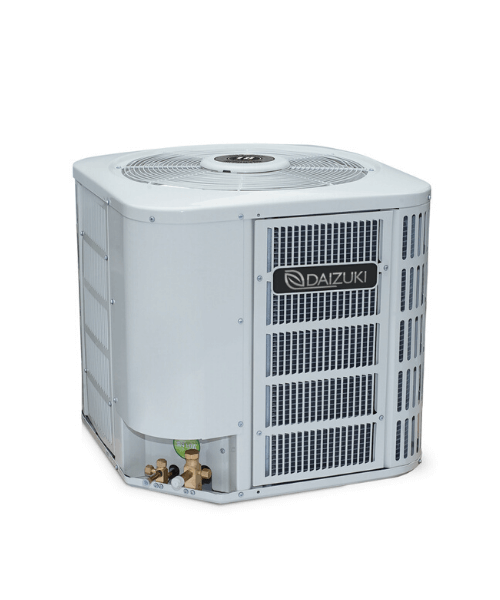

Condensing Unit |
