 Slim Compact Design |
 Ideal For Perimeter Cooling And Heating |
 Optimized Air Blower For Quiet Operation |
 Low Amp DC Motor |
 Quiet Operation |
 Automatic Restart |
 Sleep Mode |
 Auto Swing |
 Fresh Air Intake |
 24-Hour Timer |
 Turbo Mode |
 Alarm System Port |
 Two-Way Condensate Draining |
 Wireless Controller (Standard) |
 Wired Wall Controller (Optional) |
 Wi-Fi Controller (Optional) |
 Built-In Drain Pump, With Easy Access For Maintenance |
Our multi zone line gives you over 246 possible combinations! Connect up to 5 zones with six different indoor systems from our high wall mounts, 4-way and 1-way cassettes, floor-ceiling units, fan coils, and air handlers. The power of flexible, customizable comfort is in your hands with Daizuki.

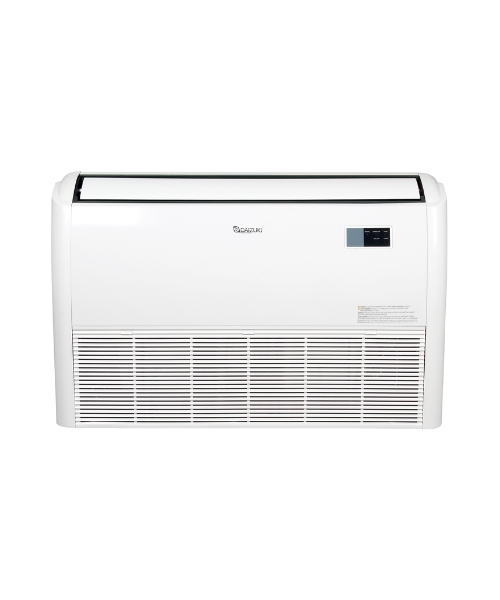

This Multi Zone Indoor Floor-Ceiling from the DXFC Series features top of the line Full DC Inverter and Heat-Pump technology. It has 24,000 BTU in capacity, high SEER2 rating for high electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.
To assure you of the highest quality standards, this product is AHRI Approved and certified with the ETL Mark. Plus, thanks to its high energy efficiency, it is Energy Star certified. Consult your local laws for energy efficiency rebates and subsidies.
This Multi Zone Indoor Floor-Ceiling Model Features:
- Smart Inverter. Can save energy while reaching the set temperature faster thanks to its advanced Low Amp DC Motor technology.
- Smart Troubleshooting. There is no time for downtime with Self-Diagnostic Programming.
- Compact and slim design, with optimized air blower for quiet operation and fresh air intake
- Ideal For Perimeter Cooling And Heating
- Two-Way Condensate Draining
- Operating features include Auto Swing, Sleep Mode, 24-Hour Timer and Alarm System Port, , Turbo Mode.
Cancer & Reproductive Harm www.P65Warnings.ca.gov
FLEX-MOUNT MULTI ZONE
| Condenser Unit | High Wall Unit | Air Handler Unit | Ceiling Cassette Unit | Fan Coil Unit | 1-Way Ceiling Cassette Unit |
| DXFM Series | DXMH Series | DXAH Series | DXCC Series | DXFU Series | DX1C Series |
 |
 |
 |
 |
 |
 |
| TECHNICAL SPECIFICATIONS | |
| Power Supply | 208~230V/1Ph/60Hz |
| Heat Pump | Yes |
| Cooling BTU | 24000 |
| Heating at 47°F BTU | 24000 |
| Thermostat Type – Wireless Remote Controller | – |
| Thermostat Type – Wired/Programmable Control, Wifi | – |
| Room Temperature – Cooling (°F) | -13~122 |
| RoomTemperature – Heating (°F) | -13~75 |
| Outdoor SKU | DXFC24E426-20 |
| DIMENSIONS | |
| OUTDOOR UNIT | |
| Net Dimension (W*H*D) | 42.05 x 26.57 x 9.25 in
1068 x 675 x 235 mm |
| Packing Dimension (W*H*D) | 45.08 x 29.72 x 12.52 in
1145 x 755 x 318 mm |
| WEIGHT | |
| OUTDOOR UNIT | |
| Net | 60.63 lb
28 kg |
| Packing | 72.09 lb
33 kg |
***You can make your orders per model and optimize the loading capacities for the container.
| WHOLESALER | |
| LOADING x CONTAINER | 40HQ Floor Loaded |
| Sets | Pcs |
|
|
|
|
|
|
|
|
|
* This Manual contains: Technical Information, Installation, Maintenance and Owner Manual and other help information.
| DXFC | |||||||
|---|---|---|---|---|---|---|---|
| WITH Valid Warranty Registration | |||||||
| Control Remote | Coil | Parts | Compressor | ||||
| n/a | 1 yr | 5 yr | 7 yr | ||||
|
Although we receive less than 0.02% defects claims on our wide range of products, it is better to be safe than sorry! Take advantage of our Limited Warranty by registering your product for warranty as soon as it is installed by a licensed HVAC Technician.
If you are looking for technical support, you can contact us via email at (customerservice@daizuki.com)or call our toll-free support line +1(800)226-9550 from Monday through Friday, 9:00 am to 5:00 pm ETA. |
|
|
|
|
