This Central Split System has 17,600 BTU in cooling and heating capacity and 14 SEER in efficiency. It works with a power supply source of 208~230V/1Ph/60Hz and is pre-charged with R410A refrigerant which does not contribute to ozone depletion.

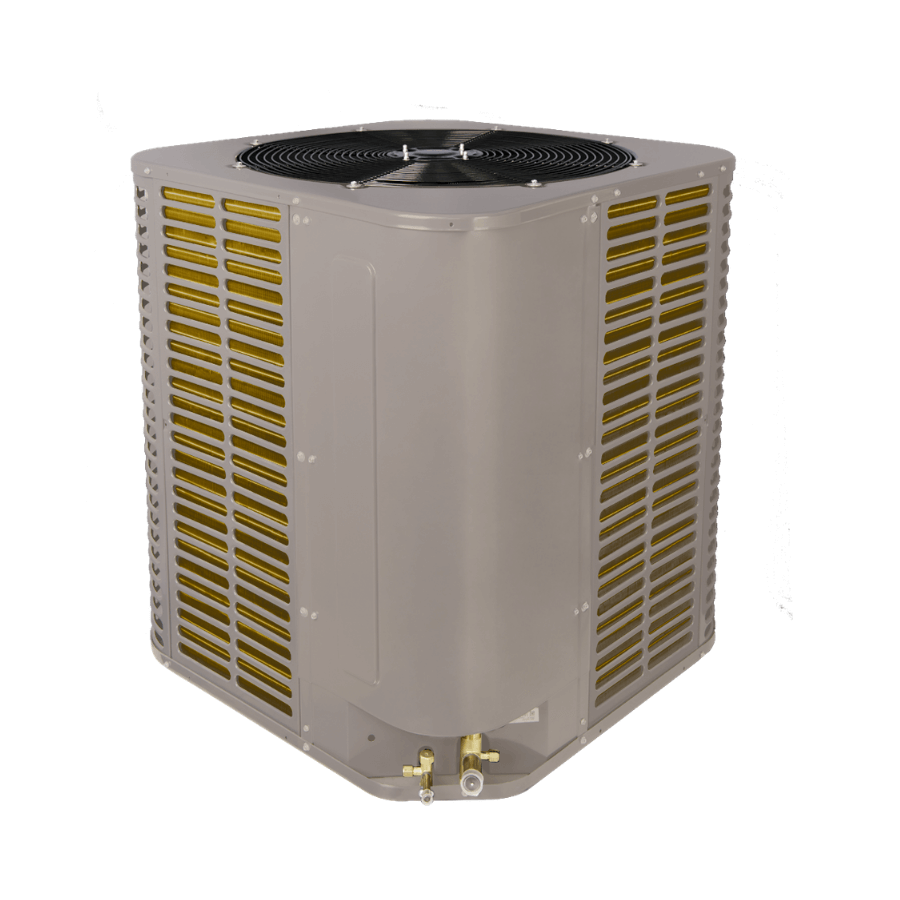

This Top Discharge Condensing Unit (CAC Series) has been designed to meet all your quality needs, from its cabinet being made with galvanized steel, to having high efficiency coils coated in GoldFin Technology for best protection against corrosion and saline environments. It also has a low voltage control (24V), and a wide operation temperature range：
Cooling range: 64⁰F – 109⁰F (18°C – 43°C)
Heating range: 20⁰F – 109⁰F (-7°C – 43°C)

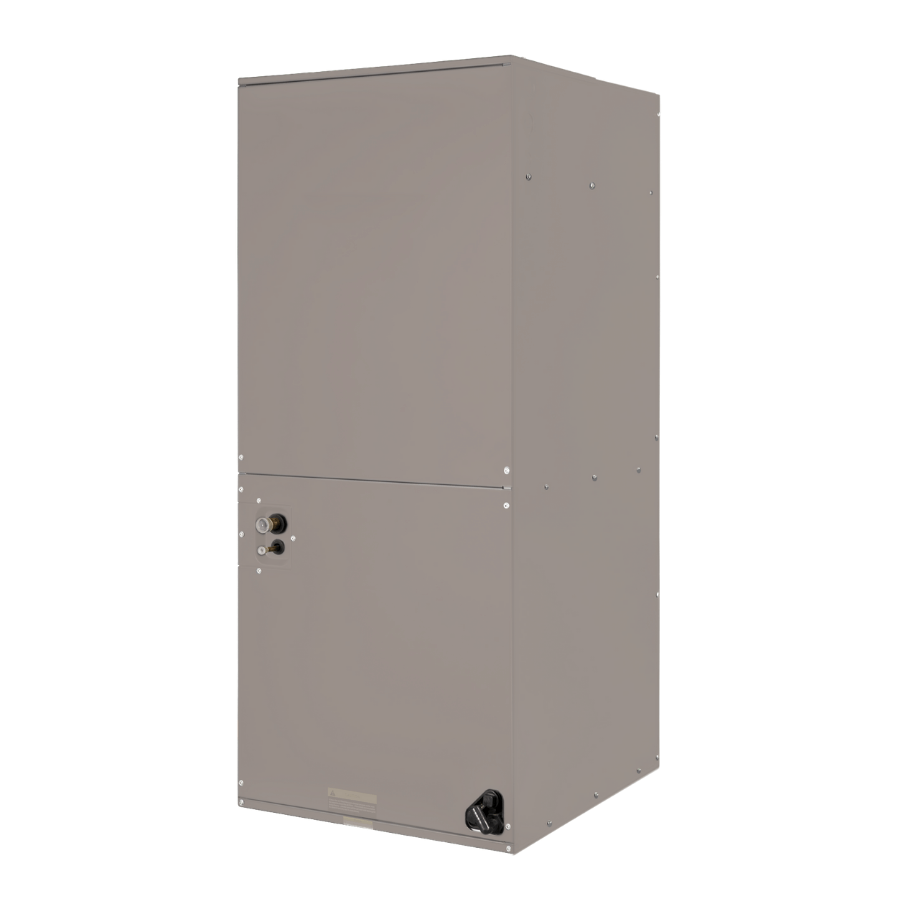

The Air Handler (AHC Series) is loved by installers because of its multi-position installation feature that offers a versatile 4-way convertible design for vertical up airflow or horizontal right airflow.
Additionally, it has the capacity of cooling ambiences in no time thanks to its powerful blower (Φ10.8’’) and direct drive motors with 3-speeds to meet desired applications. For durability, this equipment’s cabinet is made out of galvanized steel and powder paint on all panels, has “A” shape coils constructed with copper tubing and enhanced aluminum fins, plus a plastic (non-corrosive) primary and secondary drainage pan.
Winter Proof. The condensing unit’s heating operation can function at full capacity in outdoor temperatures as low as 19°F/-7°C, and could operate at half capacity in outdoor temperatures as low as -13°F/-25°C.
To bring you peace of mind, this equipment is AHRI Approved and certified with the ETL Mark for high quality standards. Plus, up to 10-year warranty; 5 year off the box, +5 more years if warranty registered.
For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:
| CAC – AHC Series | |
| Condensing Unit | Air Handler |
| CAC1813H14 | AHC18H14 |
If you are interested in enhancing its heating capacity, you can acquire a compatible Electric Heat Kit accessory such as the ones bellow:
| Field Installed Electric Heat Kits (optional) | |||
| Model | Part No. | Description | |
| 81-23259-00 | ECHK-05A | 5 kW Electric Strip Heater | |
| 81-23258-00 | ECHK-08A | 7.5 kW Electric Strip Heater | |
| 81-23257-00 | ECHK-10A | 10 kW Electric Strip Heater | |
| 81-23256-00 | ECHK-15A | 15 kW Electric Strip Heater | |
| 81-23255-00 | ECHK-20A | 20 kW Electric Strip Heater | |
| We strongly recommend consulting with a certified HVAC/R technician before purchasing and/or installing an Electric Heat Kit on your HVAC/R system. | |||
| TECHNICAL SPECIFICATIONS | |||
| Condensing Unit | Air Handler | ||
| SKU | CAC1813H14 | AHC18H14 | |
| BTU | 17,600 | 17,600 | |
| Ton | 1.46 | 1.46 | |
| Power Supply |
208~230V/1Ph/60Hz
|
208~230V/1Ph/60Hz
|
|
| SEER | 14 | 14 | |
| Heat Pump | Yes | Yes | |
| Refrigerant Gas | R410A | R410A | |
| Compressor Brand | HITACHI | – | |
| Compressor Type | Rotary | – | |
| Installation Kit | No | No | |
| DIMENSIONS | CAC1813H14 | AHC18H14 | |
| Net Dimension (W*H*D) | 21.87 x 24.93 x 2187 in
554 x 633 x 554 mm |
19.66 x 45.75 x 22 in
500 x 1162 x 560 mm |
|
| Packing Dimension (W*H*D) | 22.9 x 26.25 x 22.9 in
575 x 575x 660mm |
22.83 x 47.62 x 25.60 in
580 x 1210 x 650 mm |
|
| WEIGHT | |||
| Net | 104 lb
47 kg |
123 lb
56 kg |
|
| Packing | 08 lb
49 kg |
134 lb
61 kg |
|
***You can make your orders per model and optimize the loading capacities for the container.
| WHOLESALER | |||
| CAC1813H14 | AHC18H14 | ||
| LOADING x CONTAINER | 40HQ Floor Loaded | LOADING x CONTAINER | 40HQ Floor Loaded |
| Sets | 320 Pcs | Sets | 120 Pcs |
|
|
|
|
|
|
|
Condensing Unit |
Installation Instructions Air Handler |
|
|
|
|
Ten (10) years on parts and compressor if valid warranty registration |
Five (5) years on parts and compressor out of the box |
|
Although we receive less than 0.02% defects claims on our wide range of products, it is better to be safe than sorry! Take advantage of our Limited Warranty by registering your product for warranty as soon as it is installed by a licensed HVAC Technician.
If you are looking for technical support, you can contact us via email at (info@daizuki.com) or call our toll-free support line +1(800)226-9550 from Monday through Friday, 9:00AM to 5:00PM ETA. |
|
|
|
|
